PW-80-125-40

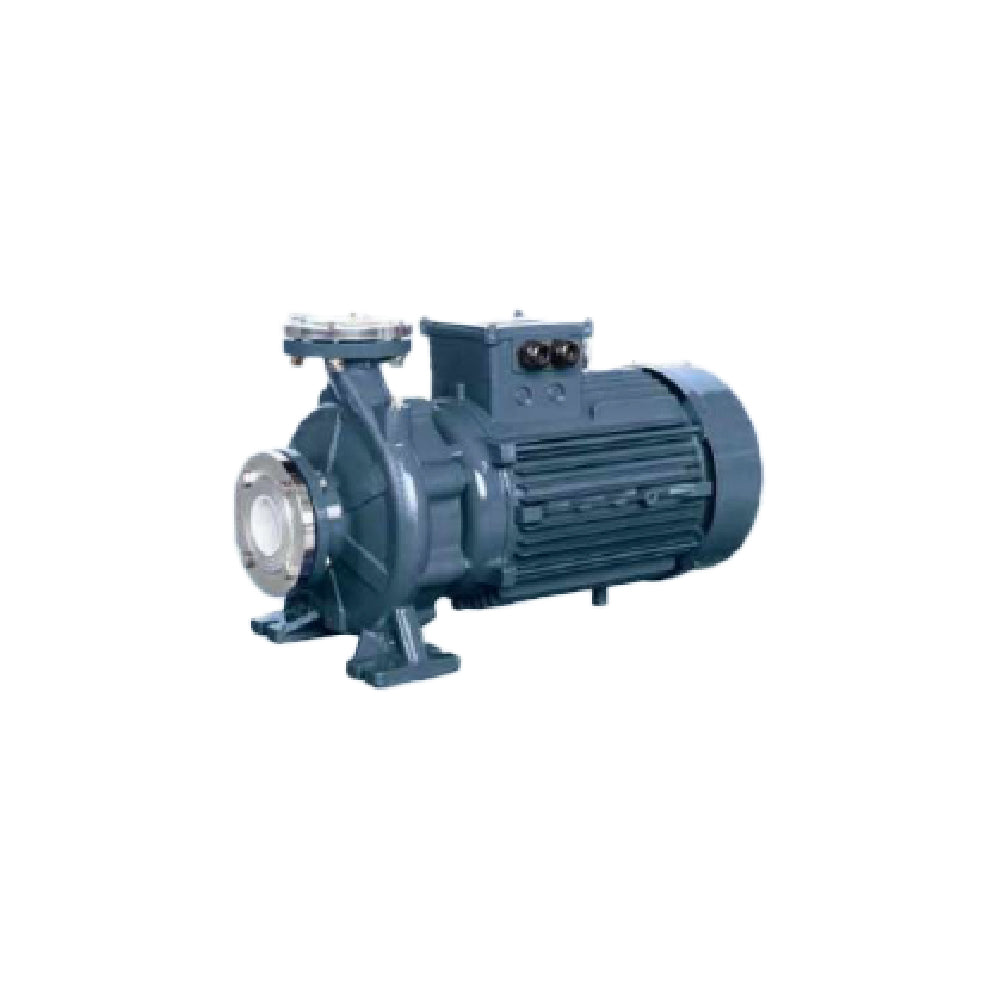

MMCO PW Series — Same-Port Centrifugal Pump

MMCO PW Series — Same-Port Centrifugal Pump

4,298.13 SAR
4,298.13 SAR 5,157.75 SAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

Size & Power: 80×80 — 4 kW & 5.5 HP
  • Low Prices
  • Guaranteed Fitment
  • Order Tracking
  • Free Returns

The MMCO PW Series is a same-port (equal suction and discharge DN) end-suction centrifugal pump engineered for industrial water transfer, pressure boosting, and general utility applications. Both suction and discharge flanges share the same nominal diameter, simplifying pipe sizing and installation in retrofit projects.

Key Features

  • Cast iron pump casing with anti-corrosive coating
  • YE3 high-efficiency motor — IP55 / Insulation Class F
  • NSK bearings for extended service life
  • Wear-resistant mechanical seal (SiC / Carbon)
  • Galvanized counter-flange with bolts, nuts and gaskets included
  • Square or round motor frames available

Operating Limits

  • Liquid temperature: −10 °C to +120 °C
  • Ambient temperature: 0 °C to +50 °C
  • Maximum working pressure: 16 bar
  • Duty: Continuous (S1)
  • Speed: 3500 rpm (60 Hz)

Applications

Clean water transfer, pressure boosting, HVAC circulation, irrigation, industrial process water, and fire-fighting jockey duty.
