PTD80-22-2

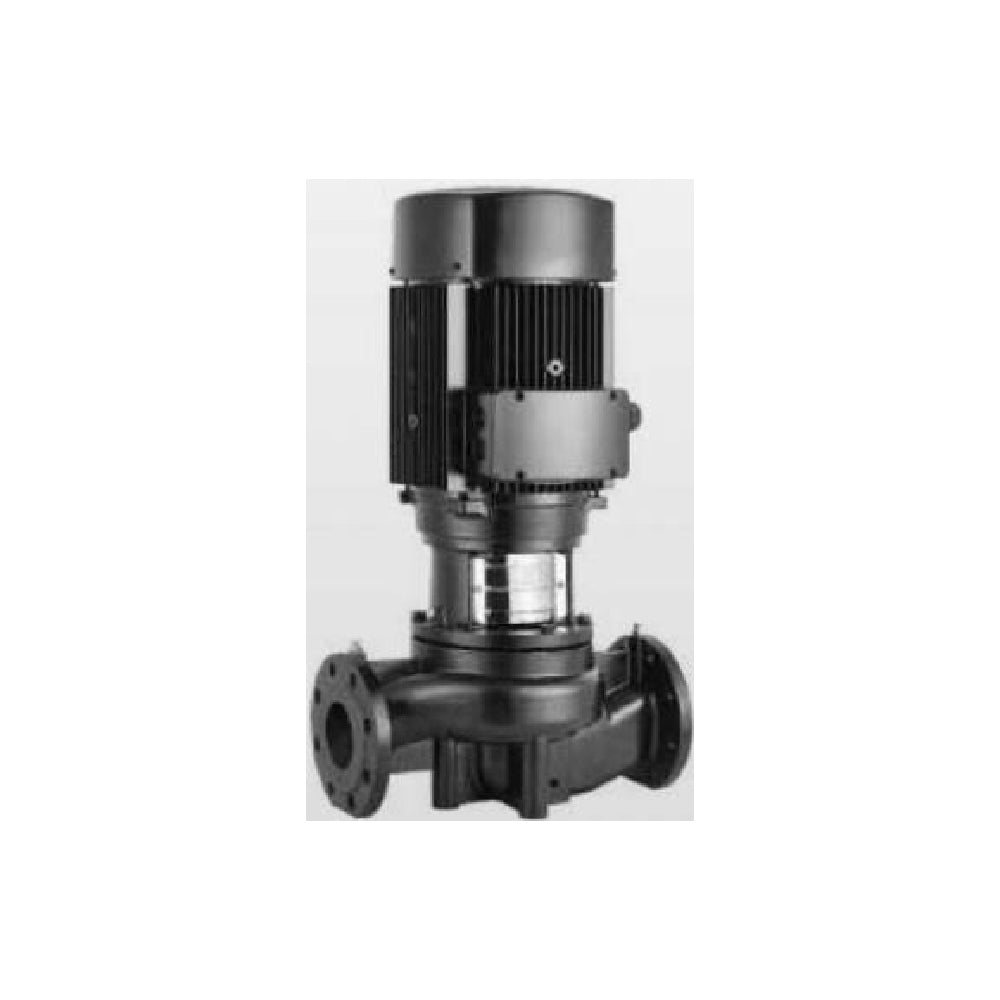

MMCO PTD Series — Vertical Inline Circulation Pump

MMCO PTD Series — Vertical Inline Circulation Pump

13,915.00 SAR
13,915.00 SAR 16,698.00 SAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

Size & Power: 80×80 — 5.5 kW & 7.5 HP
  • Low Prices
  • Guaranteed Fitment
  • Order Tracking
  • Free Returns

The MMCO PTD Series is a vertical inline single-stage circulation pump with radial suction and discharge ports. Close-coupled design and inline construction simplify piping and save floor space versus end-suction units.

Key Features

  • Inline suction/discharge — drops directly into existing pipework
  • Top pull-out design — service motor and impeller without disturbing volute or piping
  • Cast iron pump body and impeller, SS304 shaft
  • FKM mechanical seal — suitable for chilled / heating water
  • IE3 / IP55 / Class F TEFC motor
  • Compact footprint — major saving on plant room floor space

Operating Limits

  • Flow: up to 250 L/min (and higher for larger frames)
  • Head: up to 50 m
  • Liquid temperature: −10 °C to +150 °C
  • Ambient temperature: −30 °C to +120 °C
  • Speed: 3500 rpm (60 Hz)

Applications

Heating systems, air conditioning, chilled water circulation, cooling tower circuits, general utility water in industries, pressure boosting, and fire-fighting jockey duty.
