IH100-80-125-2-316

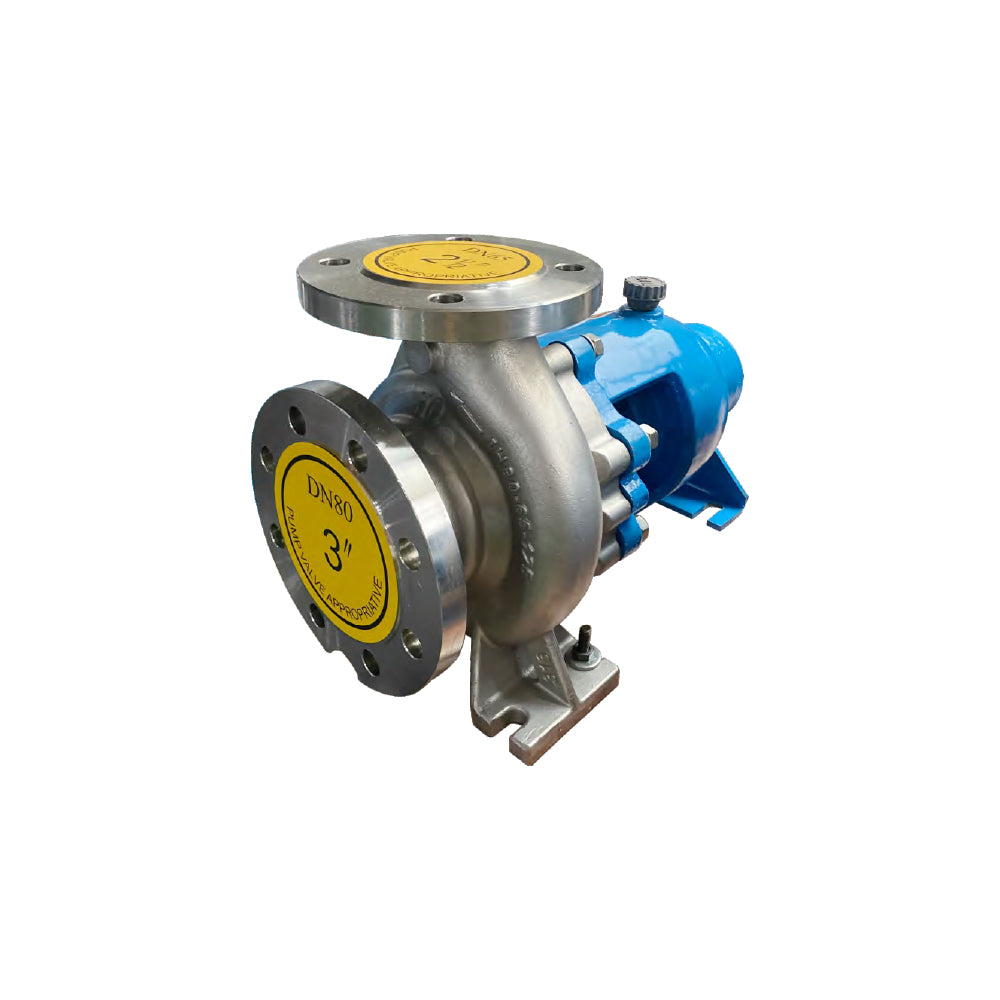

MMCO IH Series — SS316L Chemical Process Pump (Bare Shaft)

MMCO IH Series — SS316L Chemical Process Pump (Bare Shaft)

20,125.00 SAR
20,125.00 SAR 24,150.00 SAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

Size & Power: 100×80 (bare shaft)
  • Low Prices
  • Guaranteed Fitment
  • Order Tracking
  • Free Returns

The MMCO IH Series is a horizontal, single-stage, volute-casing process pump constructed in SS316L — engineered for trouble-free pumping of clean, slightly dirty, or corrosive liquids in chemical, pharmaceutical, and petrochemical service. Dimensions and nominal ratings follow ISO 2858.

Key Features

  • SS316L pump casing and impeller
  • SS420 shaft
  • ISO 2858 / ISO 5199 process pump standards
  • Back pull-out design — dismantle bearing unit without disturbing piping
  • Optional heating jacket for liquids that solidify when cold
  • Supplied bare shaft (pump only, without motor)

Operating Limits

  • Capacity: 6.3 – 400 m³/h
  • Head: 5 – 125 m
  • Speed: 1750 / 3500 rpm at 60 Hz
  • Maximum working pressure: 1.6 MPa (16 bar)

Applications

Chemical and petrochemical, pharmaceutical, paint, plastic and rubber, ferrous and non-ferrous metal, pulp and paper, textile, and food and drink industries.

Note: This is a bare-shaft pump. Motor, baseplate, and coupling are quoted separately.
