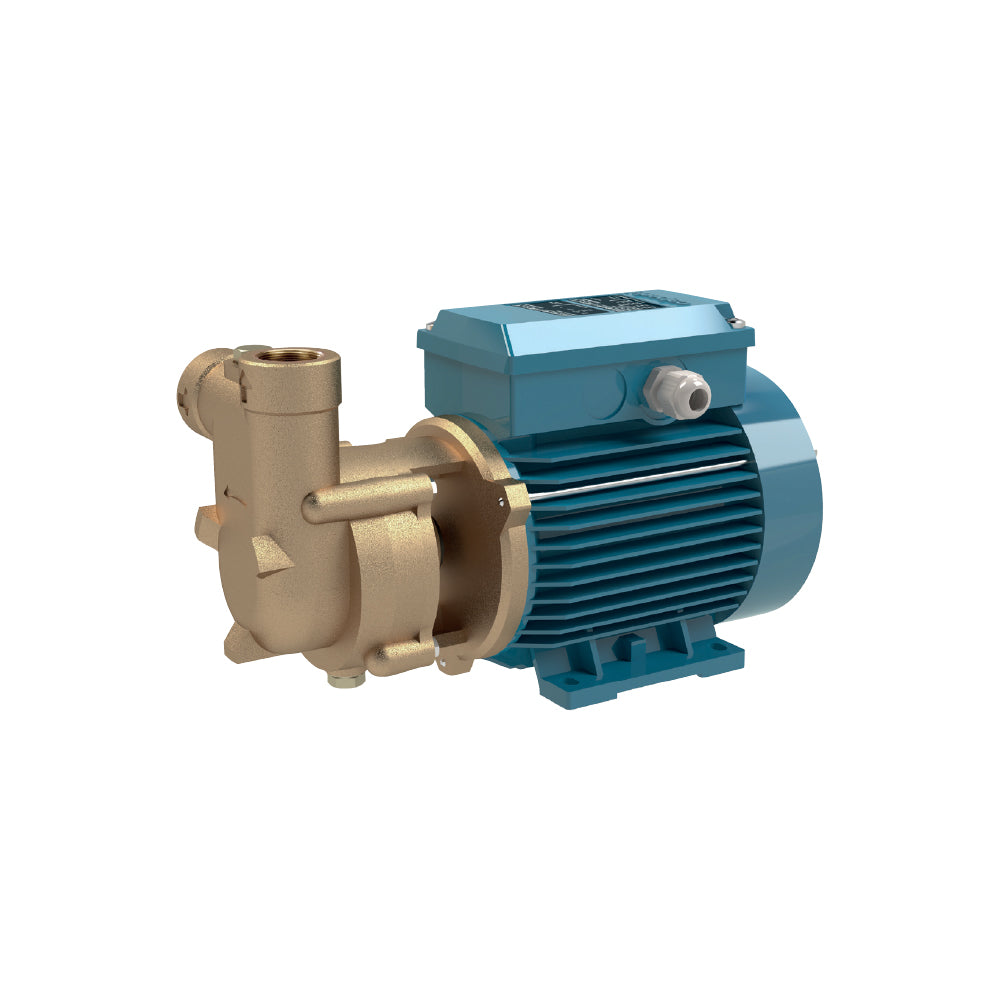

Calpeda CAM 90/A — Self-Priming Liquid Ring Pump

Calpeda CAM 90/A — Self-Priming Liquid Ring Pump

2,990.00 SAR
2,990.00 SAR 3,588.00 SAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

Size & Power: 230V Single-Phase — 0.55 kW & 0.75 HP
  • Low Prices
  • Guaranteed Fitment
  • Order Tracking
  • Free Returns

The Calpeda CAM 90/A is a self-priming liquid-ring pump manufactured in Italy by Calpeda — one of the most respected European pump brands. The liquid-ring design draws water from depths up to 9 m and handles entrained air or gas without losing prime.

Key Features

  • Cast iron pump casing and lantern bracket
  • Brass star-shaped impeller with anti-locking shim ring
  • Single-phase 230 V motor with thermal protection
  • Self-priming up to 9 m negative suction
  • Insulation Class F / IP54 protection
  • Capacitor inside terminal box — fully self-contained
  • Made in Italy — Calpeda original

Operating Limits

  • Flow: up to 1.5 m³/h (25 L/min)
  • Head: up to 47 m
  • Power: 0.55 kW / 0.75 HP
  • Connections: G 1" / G 1" (ISO 228)
  • Liquid temperature: −10 °C to +90 °C
  • Maximum pressure: 6 bar
  • Duty: Continuous

Applications

Drawing water from wells, network pressure boosting (where local code permits), pumping liquids with entrained air or gas, and small water-supply systems where reliable self-priming is essential.
