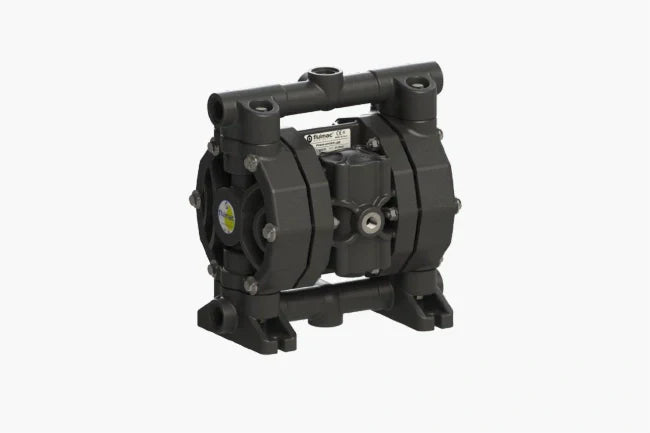

AODD Pumps: The Complete Guide to Double Diaphragm Pneumatic Pumps
Air-Operated Double Diaphragm pumps — commonly known as AODD pumps or double diaphragm pneumatic pumps — are the industrial world's go-to solution for moving aggressive, viscous, or solid-laden fluids safely and efficiently.
01 March 2026
Share
AODD Pumps: The Complete Guide to Double Diaphragm Pneumatic Pumps
7 min read · Fluid Handling Experts
Air-Operated Double Diaphragm pumps — commonly known as AODD pumps or double diaphragm pneumatic pumps — are the industrial world's go-to solution for moving aggressive, viscous, or solid-laden fluids safely and efficiently. This guide covers everything you need to know before buying.
🔍 Top Search Keywords for This Product
What Is an AODD Pump?
An Air-Operated Double Diaphragm (AODD) pump uses compressed air as its power source to drive two flexible membranes back and forth inside opposing chambers. As one diaphragm is pushed outward by air, it forces liquid out through the discharge valve. Simultaneously, the other diaphragm retracts, creating suction that draws liquid in.
Because there are no mechanical seals, no rotating parts in contact with the liquid, and no electricity near the fluid, AODD pumps are uniquely suited to hazardous, flammable, abrasive, and sanitary applications where other pump types would fail or create safety risks.
🛒 Browse All Diaphragm Pumps at Sawab Industrial →How Does a Double Diaphragm Pump Work?
Compressed Air Enters
Plant air (typically 1–8 bar) feeds into the air distribution valve, directing airflow to one of the two chambers.
Diaphragm Flexes Out
The pressurised diaphragm pushes the fluid chamber, forcing liquid past the check valve and out through the discharge port.
Suction Is Created
On the opposite side, the outgoing air exhausts to atmosphere; the diaphragm retracts, creating negative pressure that pulls liquid in through the suction valve.
Valve Switches Automatically
The air distributor senses the diaphragm position and flips the airflow — the cycle repeats on the other side, delivering near-continuous flow.
Flow Rate Is Adjusted
Simply regulate the incoming air pressure and volume to increase or decrease flow — no variable frequency drive or complex controls needed.
Key Benefits of Pneumatic Diaphragm Pumps
⚡
No Electricity Near Fluid
Compressed-air drive is inherently safe in ATEX / explosive atmospheres and wet environments.
🔄
Self-Priming
Starts dry and lifts fluid from depths up to 7 m without priming — ideal for sumps and tanks.
🧪
Handles Any Fluid
Acids, alkalis, solvents, slurries, paints, food products — viscosity up to 50,000 cPs.
🛡️
Run-Dry Safe
No damage if the fluid supply runs out — the pump stalls and restarts when flow resumes.
🔧
Easy Maintenance
Minimal moving parts, tool-free diaphragm replacement, no shaft seals to leak or replace.
📐
Variable Flow
Continuously adjustable flow rate — just dial the air regulator. No inverter required.
AODD vs. Other Industrial Pump Types
| Feature | AODD / Diaphragm | Centrifugal | Peristaltic | Gear Pump |
|---|---|---|---|---|
| Handles solids in suspension | ✔ Yes (up to 10 mm) | ✘ Limited | ✔ Yes | ✘ No |
| ATEX / explosive atmosphere | ✔ Standard | ✘ Special version | ✘ Rarely | ✘ Rarely |
| Run-dry safe | ✔ Yes | ✘ No | ✔ Yes | ✘ No |
| Self-priming | ✔ Yes | ✘ No | ✔ Yes | ✔ Yes |
| High-viscosity fluids | ✔ Up to 50,000 cPs | ✘ Low only | ✔ Yes | ✔ Yes |
| Variable flow (no inverter) | ✔ Air regulator | ✘ Needs VFD | ✔ Speed control | ✘ Needs VFD |
| FDA / food-grade versions | ✔ Yes | ✔ Yes | ✔ Yes | ✔ Yes |
| Submersible operation | ✔ Yes | ✔ Yes | ✘ No | ✘ No |
Top Industries & Applications
Double diaphragm pneumatic pumps are used across virtually every process industry. The most common applications include:
Chemical & Petrochemical
Transfer of acids, alkalis, solvents, and corrosive reagents. ATEX-certified models handle flammable or explosive atmospheres in compliance with EU Directive 2014/34/EU.
Food & Beverage
Food-grade AODD pumps — built with electro-polished SS AISI 316 and PTFE membranes — transfer sauces, juices, dairy products, and viscous pastes while meeting FDA and EC 1935/2004 hygiene standards.
Pharmaceutical & Cosmetics
Precise, gentle fluid handling without contamination. FDA-compliant material certificates available. Clean-in-place (CIP) and sterilise-in-place (SIP) compatible configurations.
Paints, Inks & Coatings
One of the oldest and most widespread AODD applications. Handles solvent-based and water-based paints, UV inks, and highly pigmented coatings without shear damage or settlement.
Mining & Water Treatment
Dewatering, sludge transfer, and slurry handling with solids up to 10 mm diameter. Flap-valve configurations prevent clogging in very thick or fibrous media.
Automotive & Surface Treatment
Galvanic baths, electrolytic solutions, and electroplating chemicals — materials like PP, PVDF, and stainless steel resist aggressive electrolytes.
How to Choose the Right Diaphragm Pump
Selecting the correct AODD pump requires evaluating four key parameters:
1. Fluid Compatibility
Match wetted materials (pump body, membranes, valves) to your fluid. Polypropylene (PP) suits mild chemicals; PVDF handles strong acids and solvents; stainless steel (SS 316) is ideal for food, pharma, and hygienic processes; aluminium works for non-corrosive fluids and paints.
2. Flow Rate & Head
Determine your required litres-per-minute and the total pressure (suction lift + discharge head). AODD pumps are sized by inlet port diameter (¼" to 3") — larger ports flow more volume but require more air consumption.
3. Viscosity & Solids Content
Standard ball-check AODD pumps handle viscosities to ~50,000 cPs. For thick pastes or fluids with large solids, specify flap valves. For shear-sensitive products, lower stroke speed reduces mechanical stress on the fluid.
4. Environment & Certification
Hazardous area? Specify ATEX Zone 1 or Zone 2. Food or pharma? Require FDA / EC 1935/2004 certification. High-humidity or outdoor? Specify corrosion-resistant body materials and stainless fasteners.
Material Selection Quick Guide
| Material | Best For | Avoid With |
|---|---|---|
| Polypropylene (PP) | Mild acids, alkalis, water-based fluids | Solvents, aromatic hydrocarbons |
| PVDF (conductive) | Strong acids, solvents, ATEX zones | Amines, caustic above 60 °C |
| Aluminium | Paints, oils, non-corrosive chemicals | Acids, caustics, food applications |
| SS AISI 316 | Food, pharma, high-temp, abrasives | Chlorinated solvents at high conc. |
| PTFE membranes | Universal chemical resistance | Molten alkali metals |
| EPDM membranes | Water, mild alkalis, food fluids | Petroleum-based solvents |
| Neoprene membranes | Oils, fuels, general purpose | Strong acids, ozone exposure |
Frequently Asked Questions
Maintenance Best Practices
Use clean, dry, lubrication-free air. Moisture or oil contamination in the air supply is the #1 cause of air valve wear. Fit an air filter-regulator (FRL unit) upstream of every pump.
Inspect membranes periodically. Fit a diaphragm failure detector to get an automatic alert the moment a membrane ruptures — preventing fluid contamination and costly downtime.
Flush after aggressive fluids. After transferring acids, solvents, or abrasives, flush with a compatible solvent or water before shutting down to prevent crystallisation inside the pump.
Check ball and seat valves. Worn check valves reduce efficiency. Valve kits are inexpensive and can be swapped in minutes without special tools.
Reduce cycle speed when not required. Lower air flow = fewer diaphragm cycles per minute = longer membrane life. Use a needle valve or air regulator to match pump speed to actual demand.
